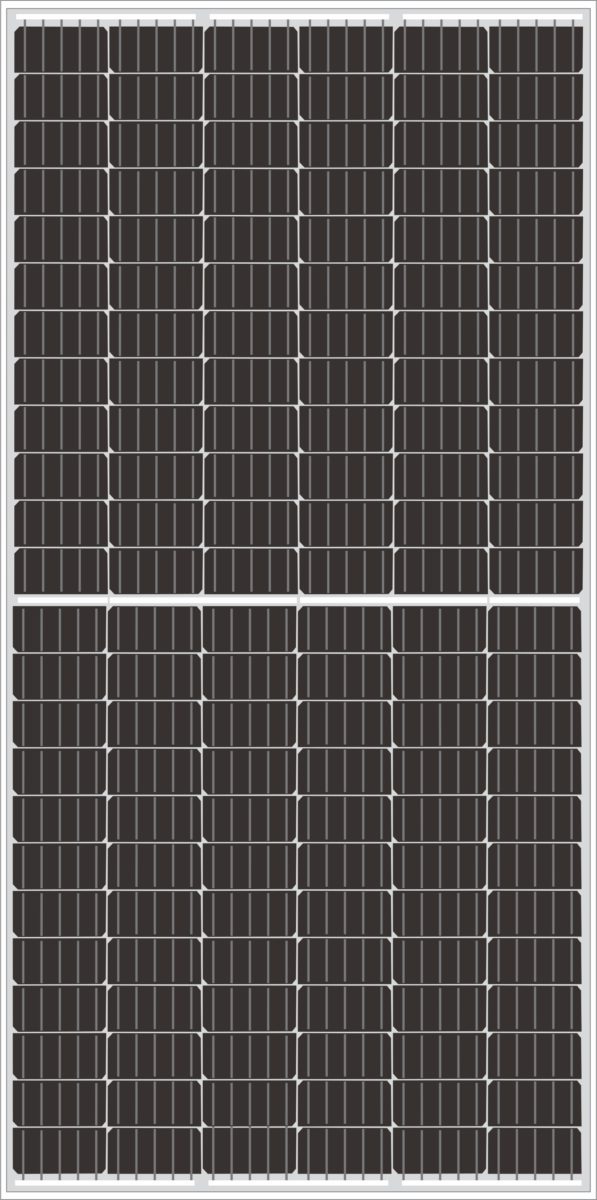

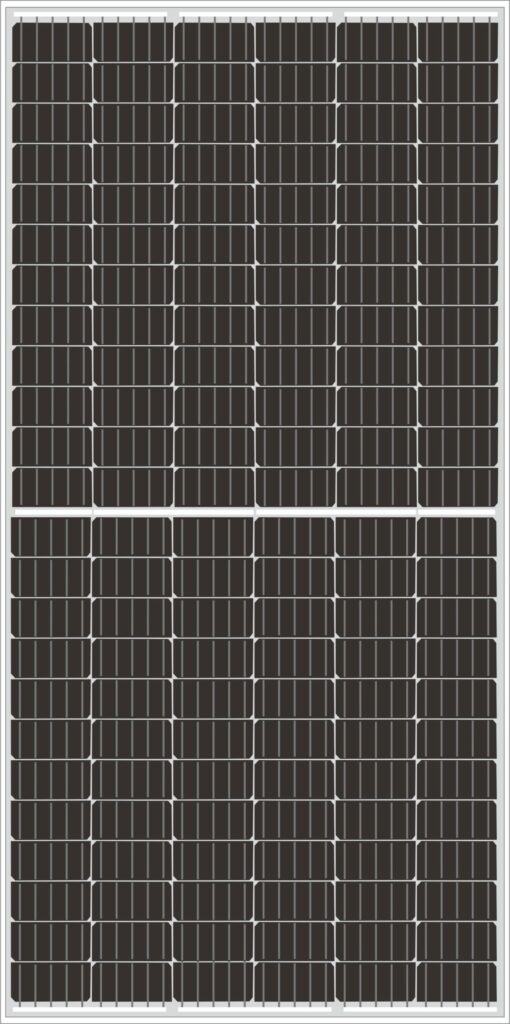

Gujarat-based Pixon Energy Limited has unveiled the PIX MPH3 144 series half-cut monocrystalline PERC modules that offer power output ranging from 375 Wp to 410 Wp with an efficiency of up to 20.4%.
The panel features 144 half-cells (arranged in a 6×24 array) and a five-busbar design. It measures 2,010×1,000×35 mm and weighs 23.5 kg.
The panel can be used in PV systems with a maximum voltage of 1,500 V and an operating temperature between -40 degrees Celsius and 85 degrees Celsius. It can withstand a snow load of up to 5,400 Pa and a wind load of up to 2,400 Pa. Power tolerance is +4.99Wp.
The panel is BIS, IEC, and UL certified. It comes with a 10-year product warranty and a 25-year linear power output warranty (considering 2.5% degradation in the first year and 0.60% from the second year to the 25th year).
The panel comes with anodized aluminum silver frames. Black is available on request.
