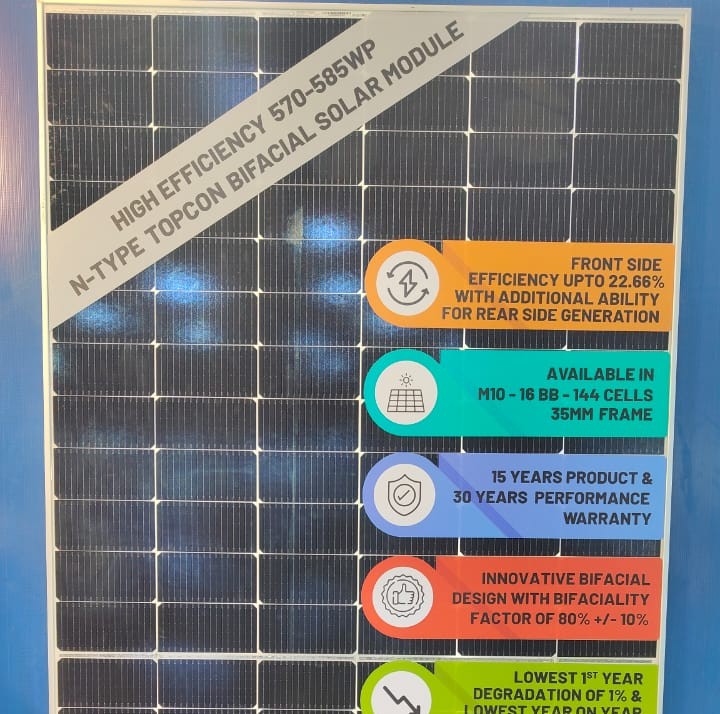

Anchor by Panasonic has unveiled a TOPCon bifacial solar module built with 144 half-cut solar cells, based on M10 wafers. The company said the module is apt for ground-mount and commercial and industrial PV installations.
The glass-to-glass module is available in power range from 570 Wp to 585 Wp, with an efficiency between 22.08% and 22.66%.
The open-circuit voltage is between 52.39 V and 53.01 V and the short-circuit current is 13.54 A to 13.71 A. Bifaciality factor is 80%±10%.
The panel weighs 33 kg and measures 2,278 mm x 1,133 mm x 35 mm. It has a temperature coefficient (Pmax) of -0.2909% per degree Celsius and an operational temperature ranging from -40 C to 85 C.
The panel comes with a 12-year product warranty and a 30-year performance warranty.
